Used HISION HTM-1500G CNC Gantry Machining Center

Loading carousel...

Product Highlight

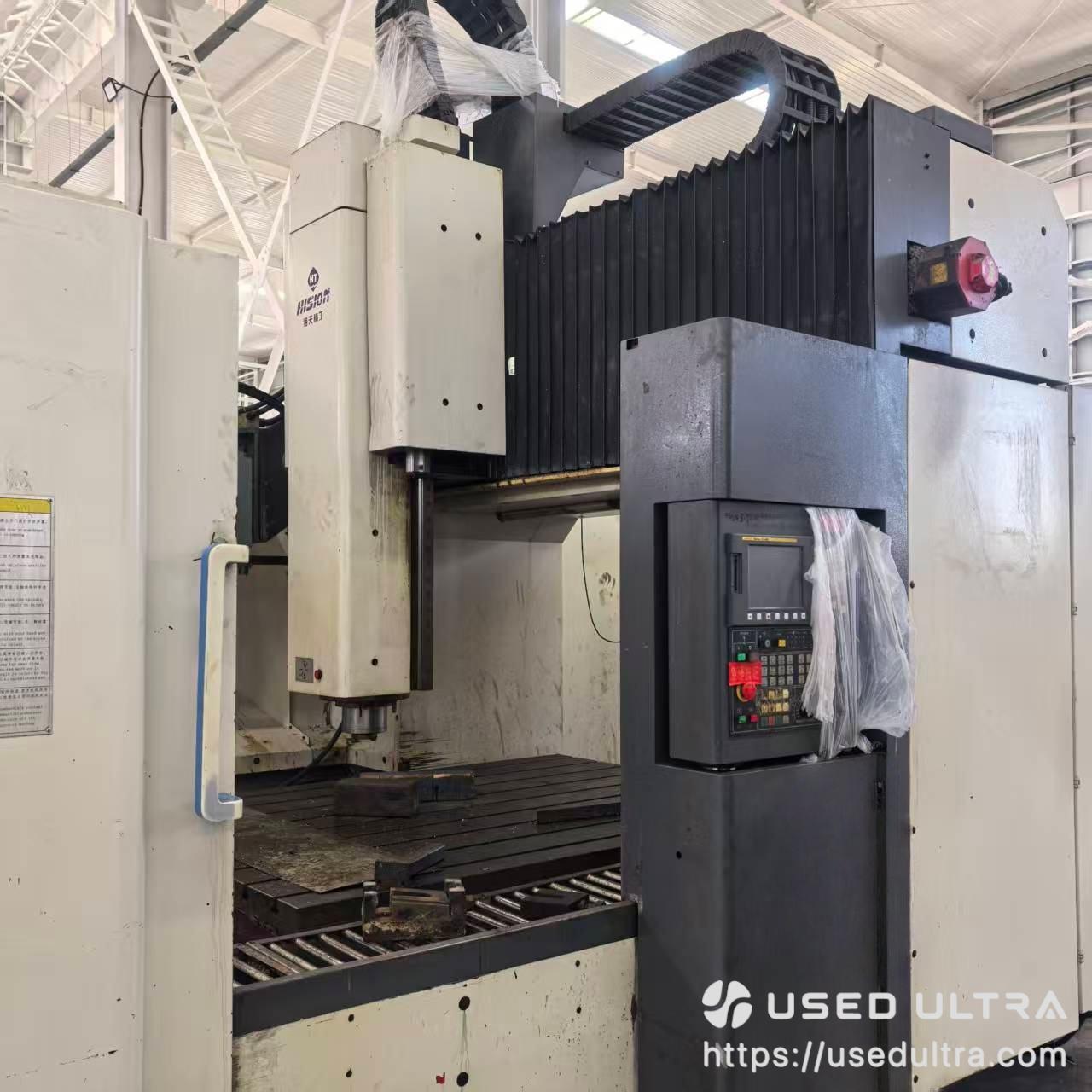

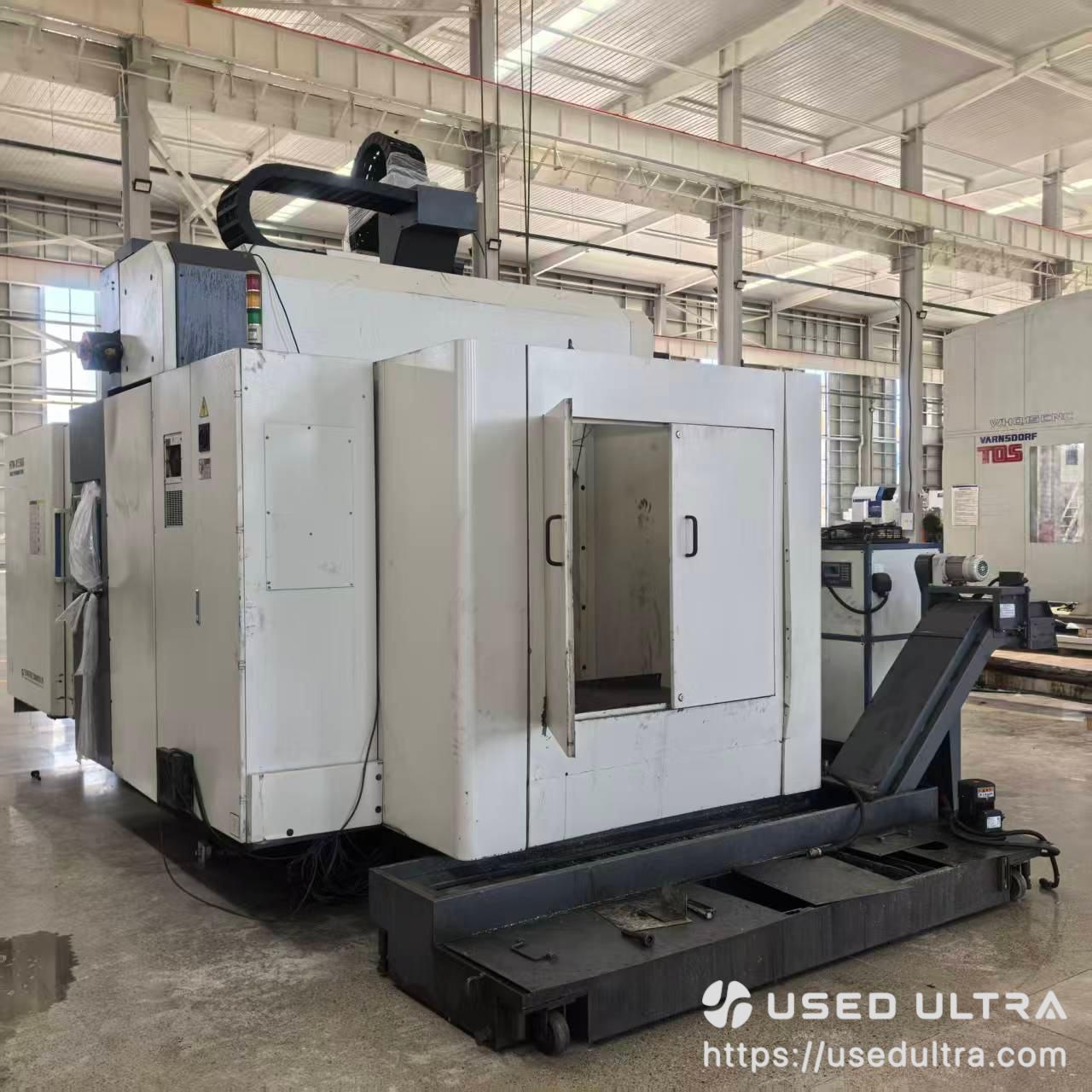

Used HISION HTM-1500G is a CNC gantry machining center designed for medium-to-large workpieces. This used machine is equipped with FANUC Series 0i-MD control and a BT50 spindle, with a 2000 × 1500 mm worktable and spindle speed of up to 6000 rpm. Its double-column structure makes it suitable for mold bases, machine parts, industrial plates and general large-component machining.

Product Description

Used HISION HTM-1500G CNC gantry machining center from China, equipped with a FANUC Series 0i-MD control and BT50 spindle. This heavy-duty double-column machine offers a large 2000 × 1500 mm worktable and up to 6000 rpm spindle speed, making it suitable for mold bases, machine components, steel plates and other medium-to-large workpieces. A practical option for manufacturers looking to increase large-part machining capacity with pre-owned CNC equipment.

Technical Specifications

Specification	Details
Brand	HISION
Manufacturer	Ningbo Haitian Precision Machinery Co., Ltd.
Model	HTM-1500G
Machine Type	CNC Gantry / Double Column Machining Center
Condition	Used / Pre-owned
Country of Origin	China
CNC Control	FANUC Series 0i-MD
X-Axis Travel	Approx. 2000 mm*
Y-Axis Travel	Approx. 1500 mm*
Z-Axis Travel	Approx. 700 mm*
Worktable Size	2000 × 1500 mm
Distance Between Columns	Approx. 1600 mm*
Spindle Taper	BT50
Spindle Speed	Up to 6000 rpm
Spindle Motor Power	Approx. 11 / 15 kW*
Tool Magazine Capacity	24 tools*
Maximum Table Load	Approx. 6000 kg*
Guideway Configuration	Hybrid linear / hardened guideway configuration*

* Specifications marked with an asterisk should be reconfirmed against the individual machine before final purchase.

Applications & Suitable Industries

Used HISION HTM-1500G gantry machining center is suitable for medium-to-large components requiring milling, drilling, boring and general CNC machining.

Typical applications include:

Mold and die manufacturing – mold bases, die plates and large tooling components
General machinery manufacturing – machine bases, housings, frames and structural components
Automotive tooling – fixtures, tooling plates and mold-related components
Engineering machinery – large steel and cast-iron components
Large plate machining – milling, drilling and finishing of industrial plates
Job shops and subcontract machining – medium-to-large batch and custom component production

HISION's gantry and double-column machining-center product families are designed around large work envelopes and heavy-duty milling applications, with BT50 tooling commonly used in these machine classes.

FAQ

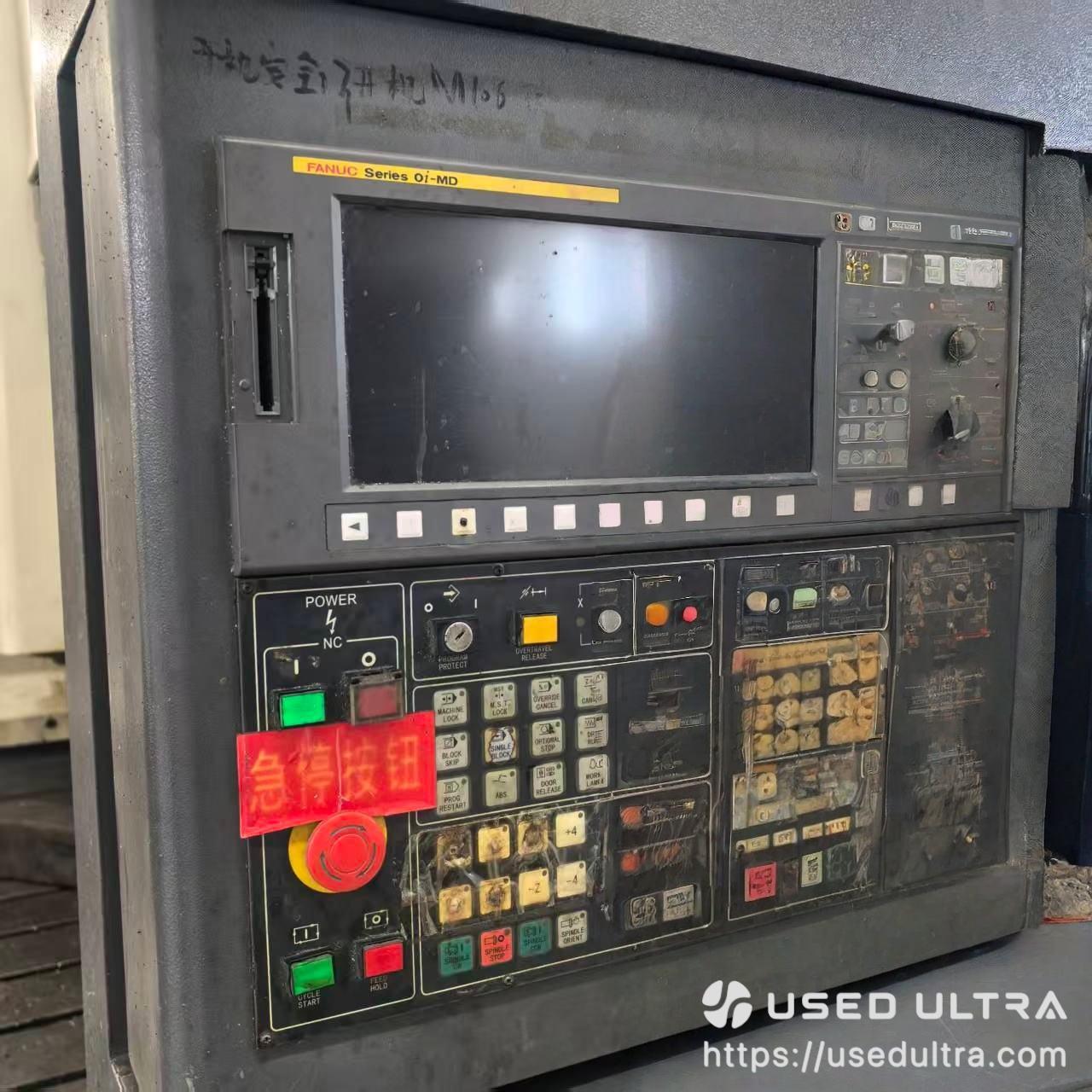

What CNC control is installed on this HISION HTM-1500G?

This machine is equipped with a FANUC Series 0i-MD CNC control, a widely used FANUC control platform for machining-center applications.

What spindle configuration does the HTM-1500G use?

This model is commonly configured with a BT50 spindle and a maximum spindle speed of approximately 6000 rpm, making it suitable for general and relatively heavy milling applications.
