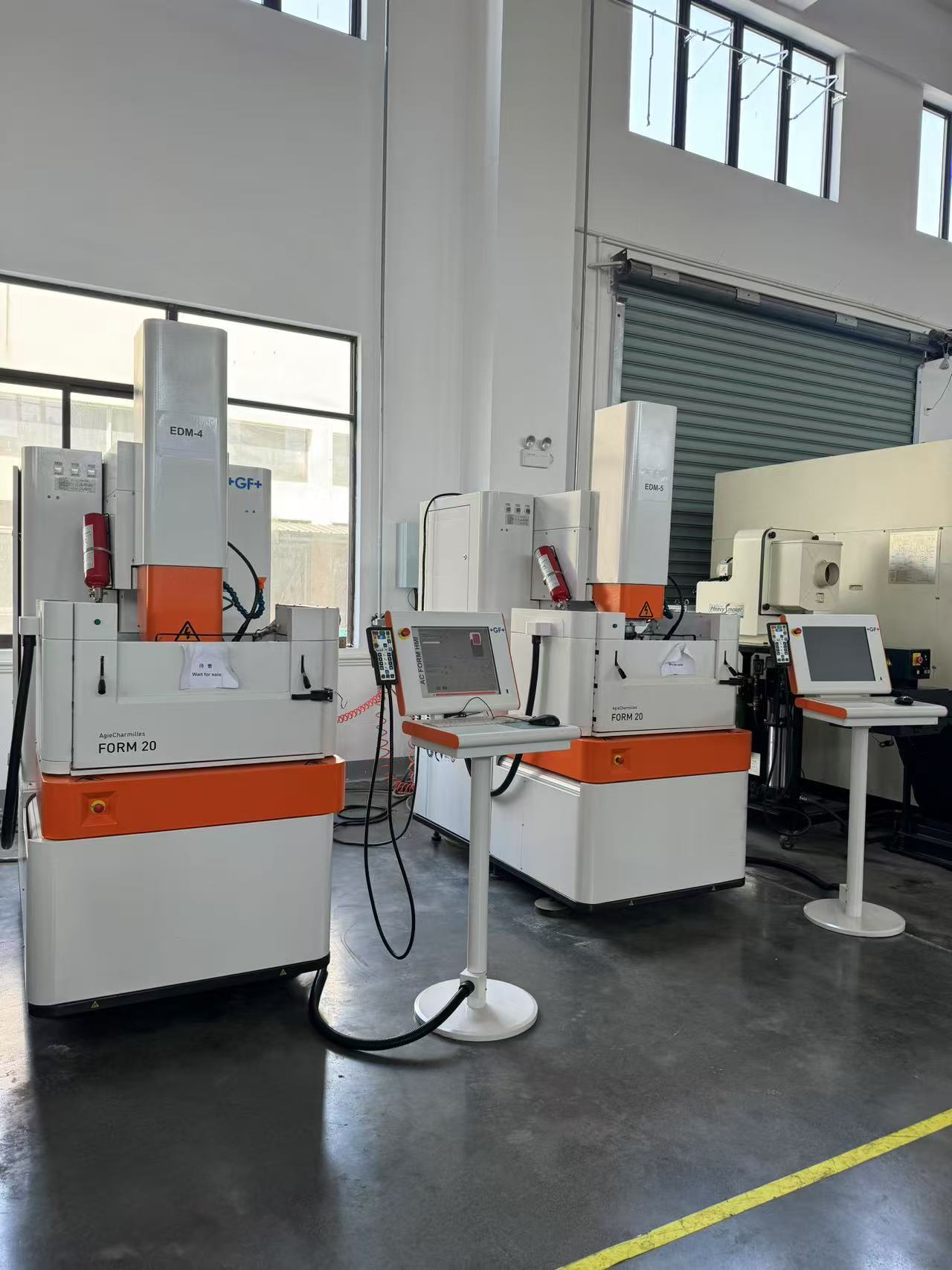

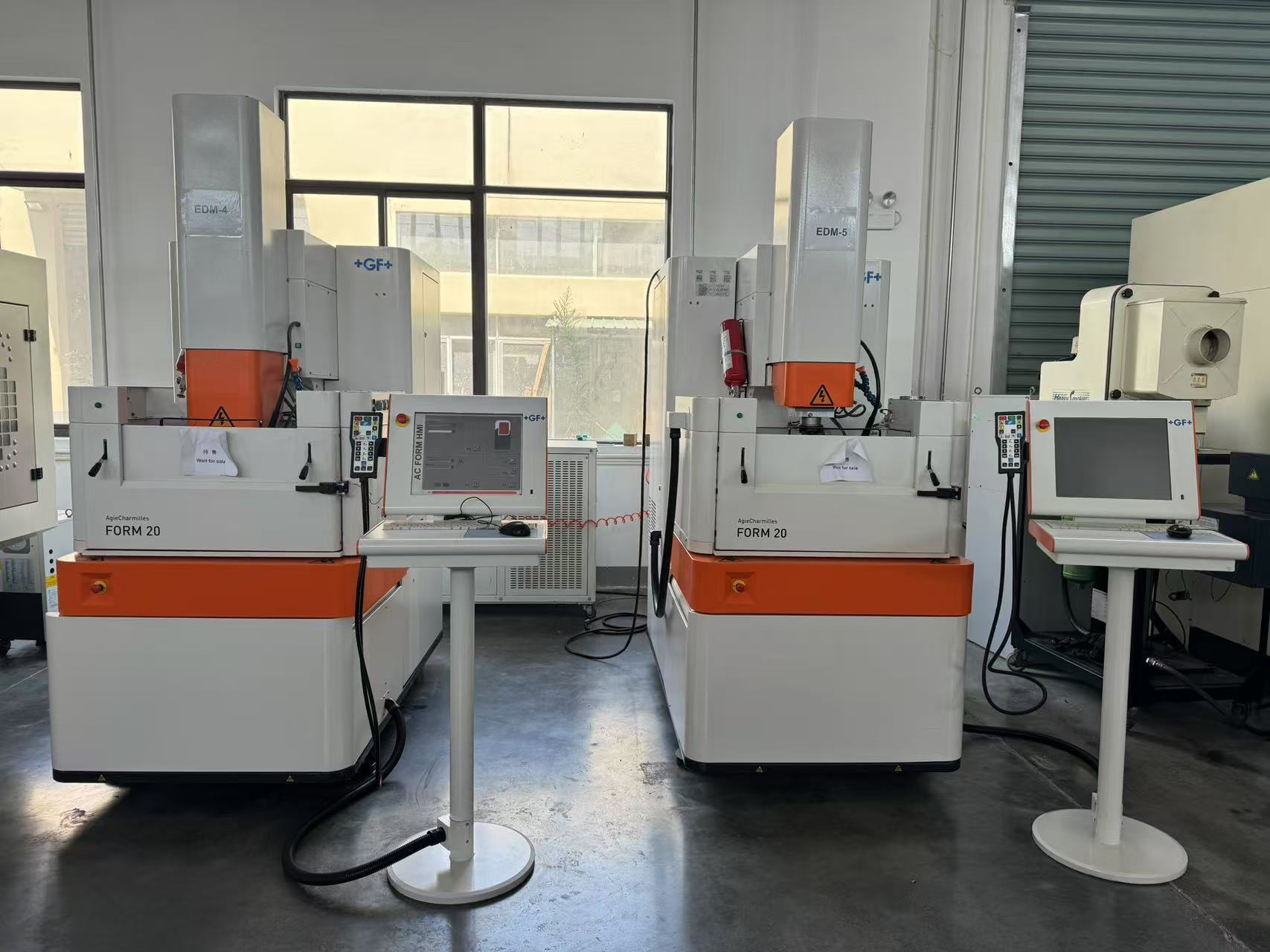

Used GF AgieCharmilles FORM 20 Sinker EDM Machine
Product Description
This used GF AgieCharmilles FORM 20 sinker EDM machine is a compact and reliable die sinking EDM solution for mold making, precision cavity machining, and small-to-medium workpiece processing. Built under the well-known AgieCharmilles / GF Machining Solutions brand, this 2016 EDM machine offers stable performance, a 50 kg maximum electrode load, and a 200 kg maximum workpiece capacity, making it a practical choice for workshops looking for proven EDM capability at a lower investment cost than a new machine.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | Sinker EDM Machine / Die Sinking EDM / Electro-Discharge Machine |
| Brand | GF AgieCharmilles / Agie Charmilles |
| Model | FORM 20 / EDM FORM 20 |
| Year | 2016 |
| Manufacturer on Nameplate | Beijing Agie Charmilles Co., Ltd. |
| Serial Number | 395.900.155.0493 |
| X/Y/Z Travel | 320 × 250 × 250 mm |
| Work Tank Internal Size | 630 × 400 mm |
| Distance from Floor to Worktable | 900 mm |
| Min./Max. Distance from Worktable to Electrode Chuck | 230 / 480 mm |
| X/Y Axis Speed | 4 m/min |
| Z Axis Speed | 6 m/min |
| Measuring System | Linear optical scale |
| X/Y/Z Measuring Resolution | 10 nm |
| Max. Electrode Weight | 50 kg |
| Max. Workpiece Weight | 200 kg |
| Max. Workpiece Size | 800 × 500 × 265 mm |
| Dielectric Fluid Capacity | 270 L |
| Filter System | 2 paper filters H15, 3–5 μm |
| Fluid Level Height | 140–310 mm |
| Working Tank Size | 955 × 540 × 350 mm |
| Power Supply Type | ISPG |
| Max. Machining Current | 80 A |
| Surface Roughness | 0.1 μm Ra |
| Phase | 3 Phase |
| Voltage | 380 V |
| Frequency | 50 Hz |
| Power | 6 kW |
| Rated Current | 10.7 A |
| Machine Size, W × D × H | Approx. 1000 × 1731 × 2372 mm |
| Floor Space, W × D | Approx. 1420 × 1731 mm |
| Machine Weight | Approx. 1730 kg |
| Condition | Used / Second-hand machine, available for inspection |
Applications & Suitable Industries
This used GF AgieCharmilles FORM 20 EDM machine is suitable for manufacturers that need accurate spark erosion machining for molds, dies, and precision parts. It can be used for plastic injection molds, die-casting molds, connector molds, electronic component tooling, precision cavities, hard material machining, and small mold inserts.
It is a good option for toolrooms, mold shops, precision machining companies, repair workshops, and factories that want to expand EDM capacity without paying the cost of a brand-new machine. The compact footprint also makes it suitable for workshops with limited floor space.
FAQ
Is this GF AgieCharmilles FORM 20 a used machine?
Yes. This is a used GF AgieCharmilles FORM 20 sinker EDM machine, manufactured in 2016. It is not a new machine, and buyers are welcome to check the real machine condition before purchase.
What kind of machining work is this FORM 20 EDM suitable for?
This machine is suitable for die sinking EDM, mold cavity machining, precision inserts, small mold parts, hard material machining, and toolroom EDM applications.
What is the travel size of this used FORM 20 EDM machine?
The X/Y/Z travel is 320 × 250 × 250 mm, which is suitable for small-to-medium precision EDM workpieces and mold components.
What is the maximum workpiece weight for this EDM machine?
The maximum workpiece weight is 200 kg, and the maximum electrode weight is 50 kg.
$39712.00
Brand
AgieCharmilles
Model
FORM 20
Origin
CH
Processing Time
8523h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check

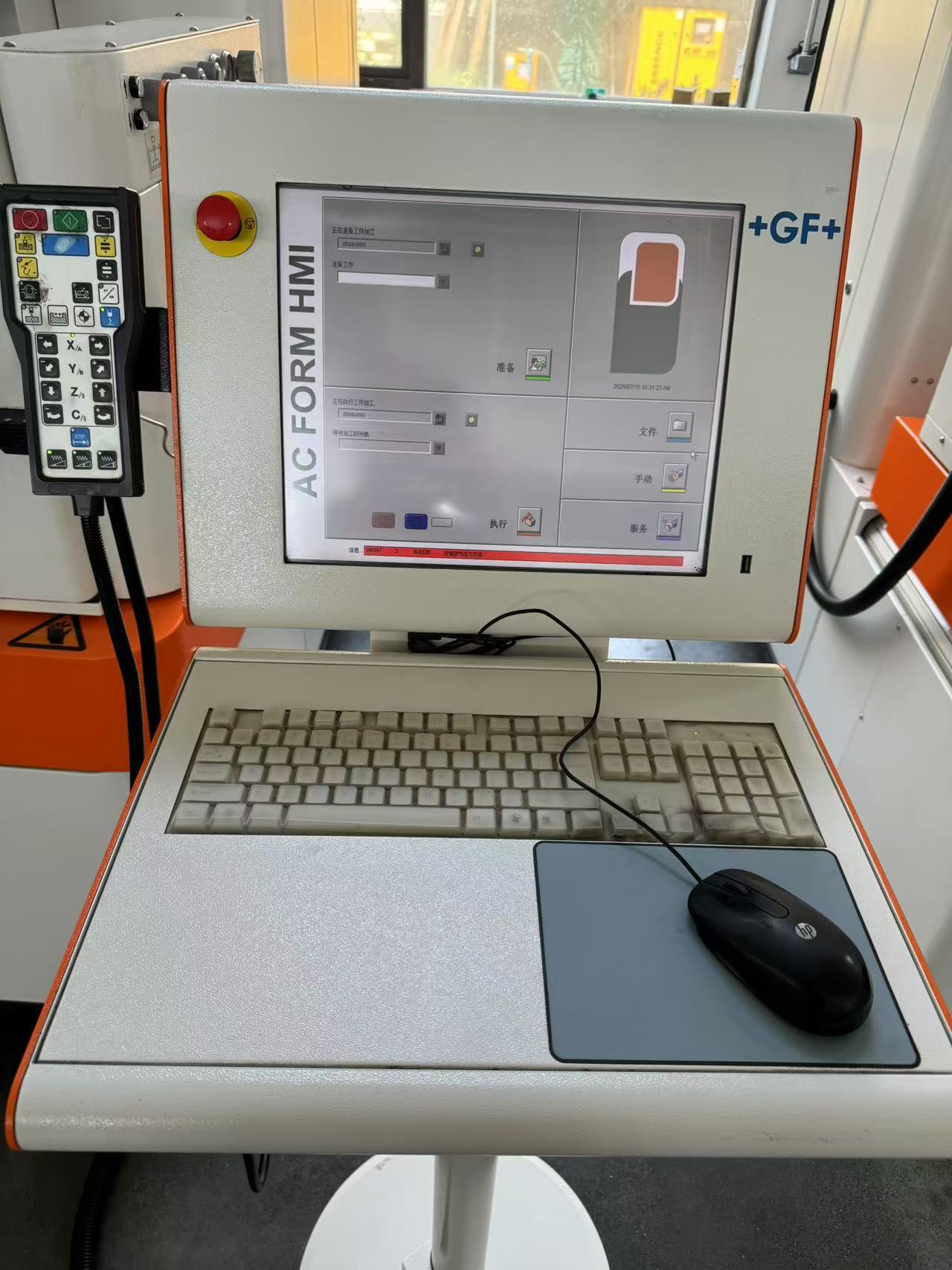

- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
