Used GF AgieCharmilles CUT E 350 Wire EDM Machine
Product Description

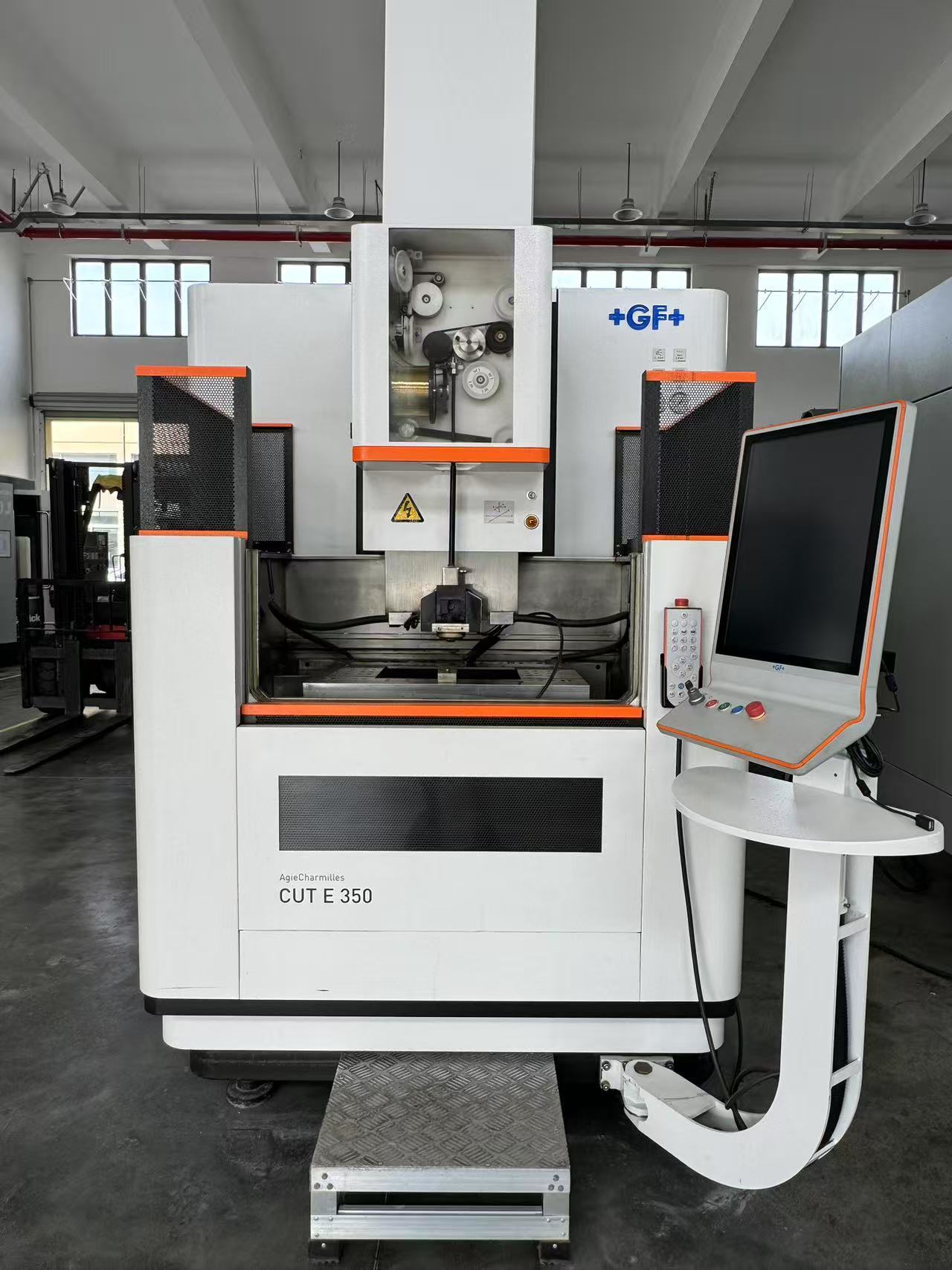

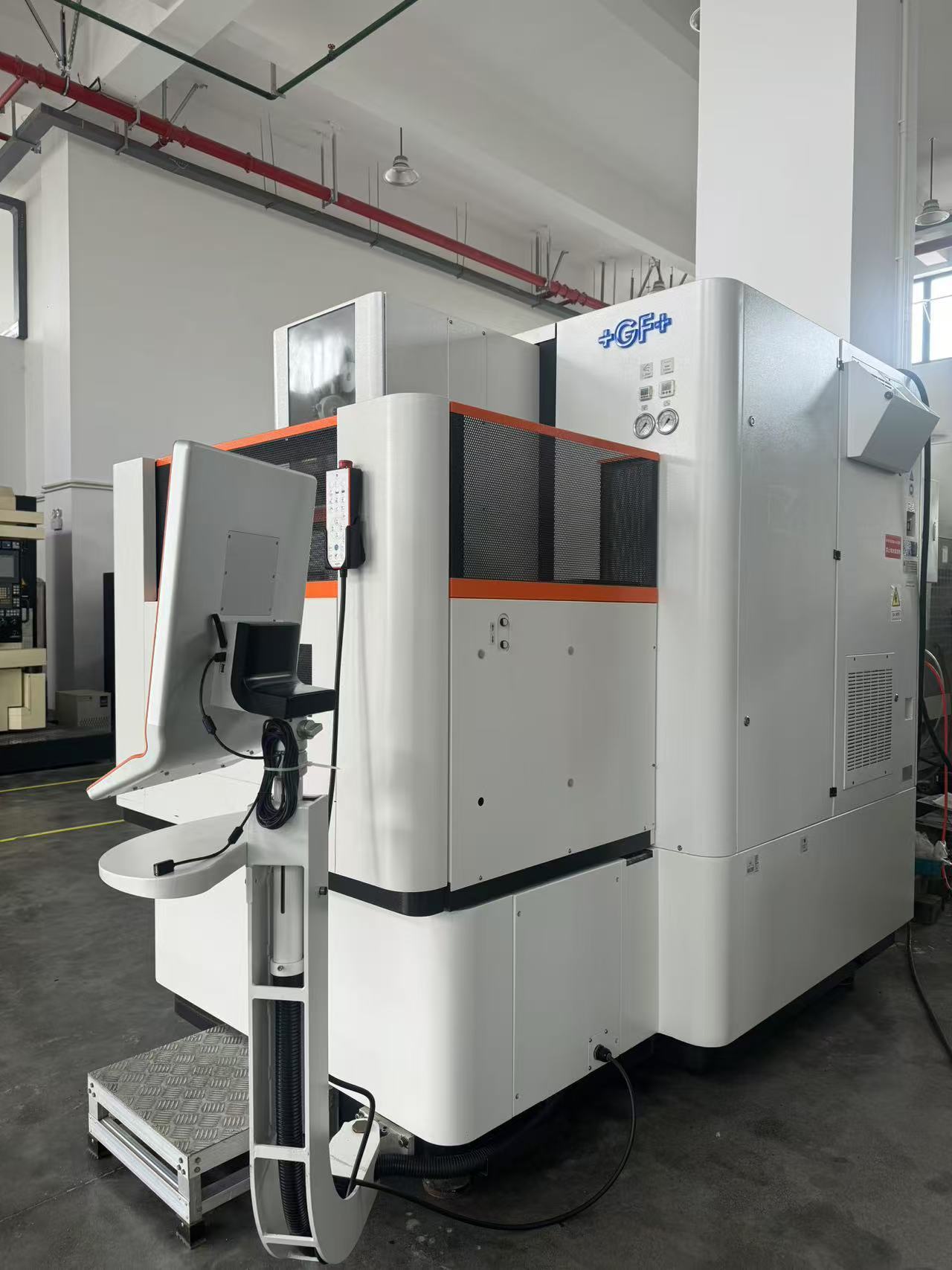

This used GF AgieCharmilles CUT E 350 wire EDM machine is a 2016 model from a well-known Swiss EDM brand, suitable for precision mold, die, electrode, and small-to-medium metal parts cutting. The machine is in clean workshop condition, with CNC control, automatic wire threading structure, and a compact 350mm X-axis travel for high-accuracy wire cut EDM applications.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | CNC Wire EDM Machine / Wire Cut EDM |
| Brand | GF AgieCharmilles |
| Model | CUT E 350 / EDM CUT E 350 |
| Condition | Used / Pre-owned |
| Year | 2016 |
| Brand Origin | Switzerland |
| Assembly Information | Swiss machine assembled in China |
| Serial No. | 396.900.170.0244 |
| X/Y/Z Travel | 350 × 250 × 250 mm |
| U/V Travel | ±45 mm |
| Max Workpiece Size | 820 × 680 × 250 mm |
| Max Workpiece Weight | 400 kg |
| Taper Cutting | Up to ±30°/45 mm or ±23°/80 mm |
| Electrode Wire Diameter | 0.15–0.30 mm |
| Wire Tension | 12 N |
| Wire Speed | 10.8 m/min |

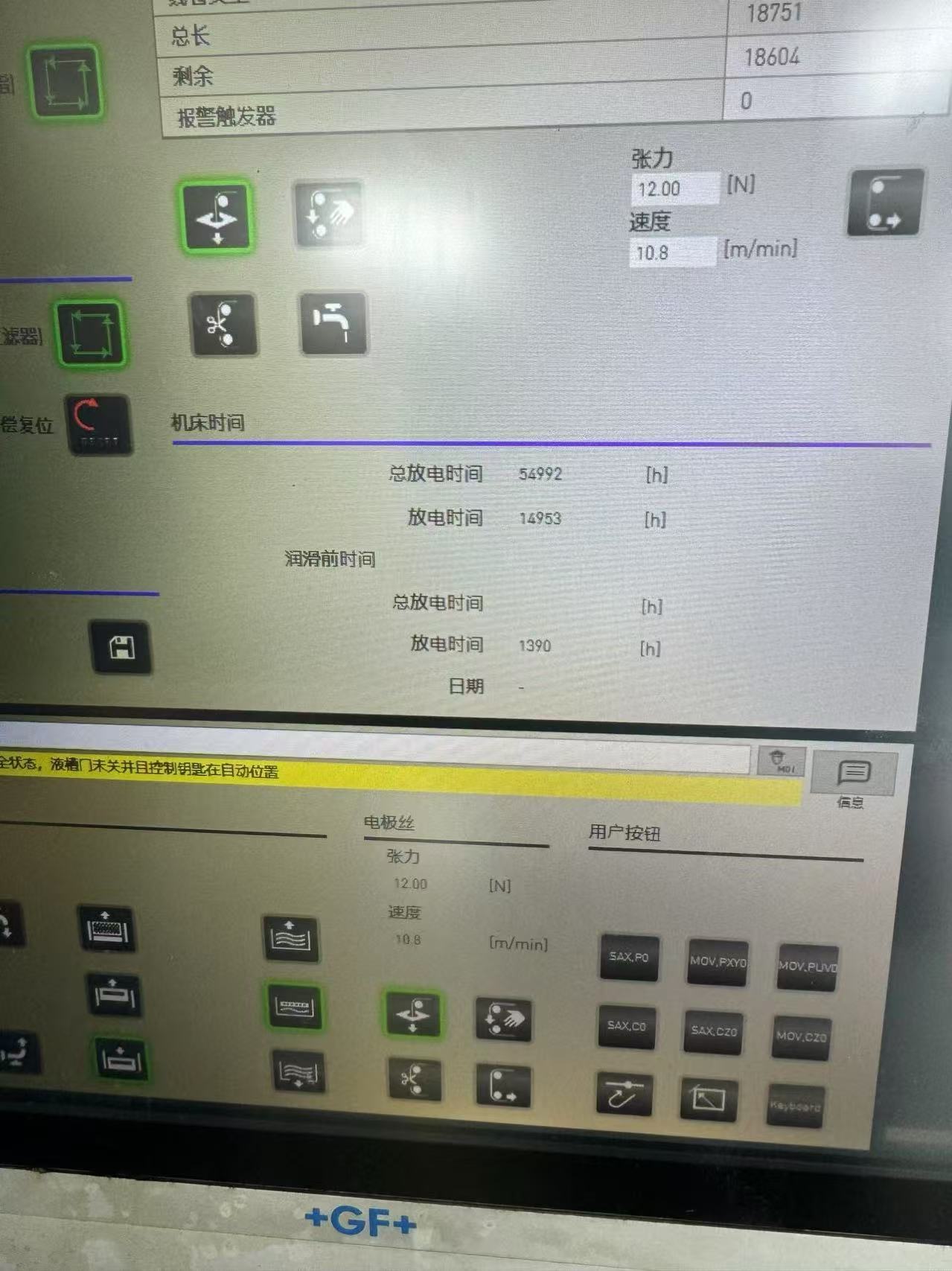

| Total Discharge Time Shown | 54,992 h |
| Discharge Time Shown | 14,953 h |
| Phase | 3 Phase |
| Voltage | 380 V |
| Frequency | 50 Hz |
| Power | 9 kVA |
| Current | 13 A |
| Short-circuit Current | 10 kA |
| Machine Weight | 2,750 kg |
Applications & Suitable Industries
The used GF AgieCharmilles CUT E 350 CNC wire EDM is suitable for precision cutting of conductive materials, especially where tight tolerance, fine corner cutting, and stable surface quality are required.
It is commonly used for mold inserts, stamping dies, precision punches, electrodes, medical components, aerospace small parts, automotive tooling, carbide parts, and complex profile cutting. With 350 × 250 × 250 mm travel and 400 kg workpiece capacity, this machine is a good choice for workshops looking for a reliable used Swiss-brand wire EDM at a lower investment cost than buying new equipment.
FAQ
Is this GF AgieCharmilles CUT E 350 a new machine?
This is a used GF AgieCharmilles CUT E 350 wire EDM machine, manufactured in 2016.
What is the travel size of this used CUT E 350 wire EDM?
The machine has X/Y/Z travel of 350 × 250 × 250 mm, with U/V travel of ±45 mm.
What is the maximum workpiece size and weight?
The maximum workpiece size is 820 × 680 × 250 mm, and the maximum workpiece weight is 400 kg.
What wire diameter can this machine use?
The supported electrode wire diameter range is 0.15–0.30 mm, suitable for precision wire EDM cutting.
Is this machine suitable for mold and die machining?
This used CNC wire EDM is suitable for mold inserts, die components, precision punches, electrodes, and complex metal profiles.
$72059.00
Brand
AgieCharmilles
Model
CUT E 350
Origin
CH
Processing Time
6425h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
