Used FISCHER ZSM 1000 Center Hole Grinder

▶

Loading carousel...

Product Highlight

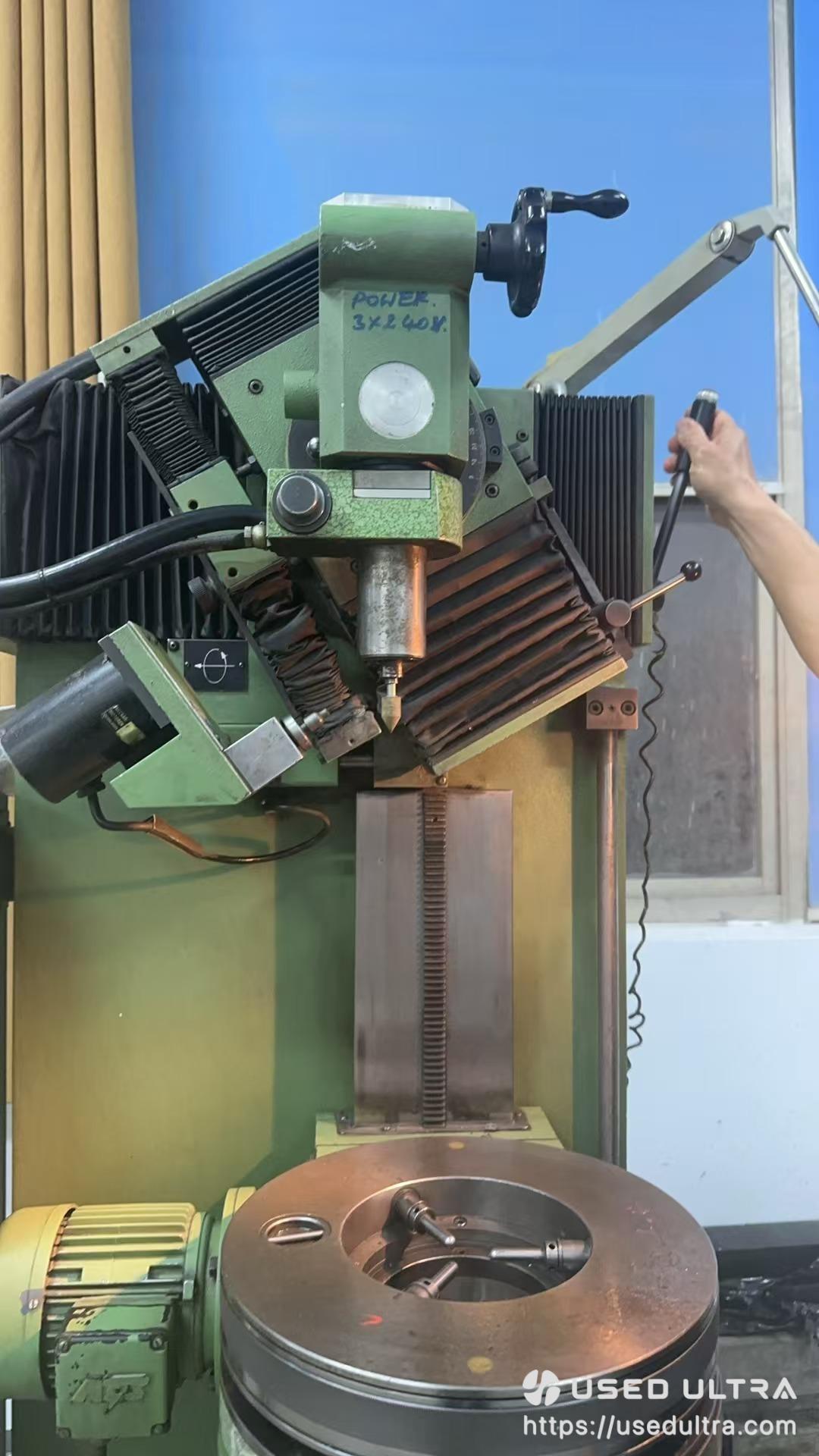

Used FISCHER DOTTIKON ZSM 1000 is a Swiss-made precision center hole grinding machine designed for accurate shaft and cylindrical component preparation. With a high-speed pneumatic spindle, precision 3-jaw chuck and adjustable grinding head, it provides a practical solution for manufacturers seeking reliable center grinding capability without the investment required for a new machine.

Product Description

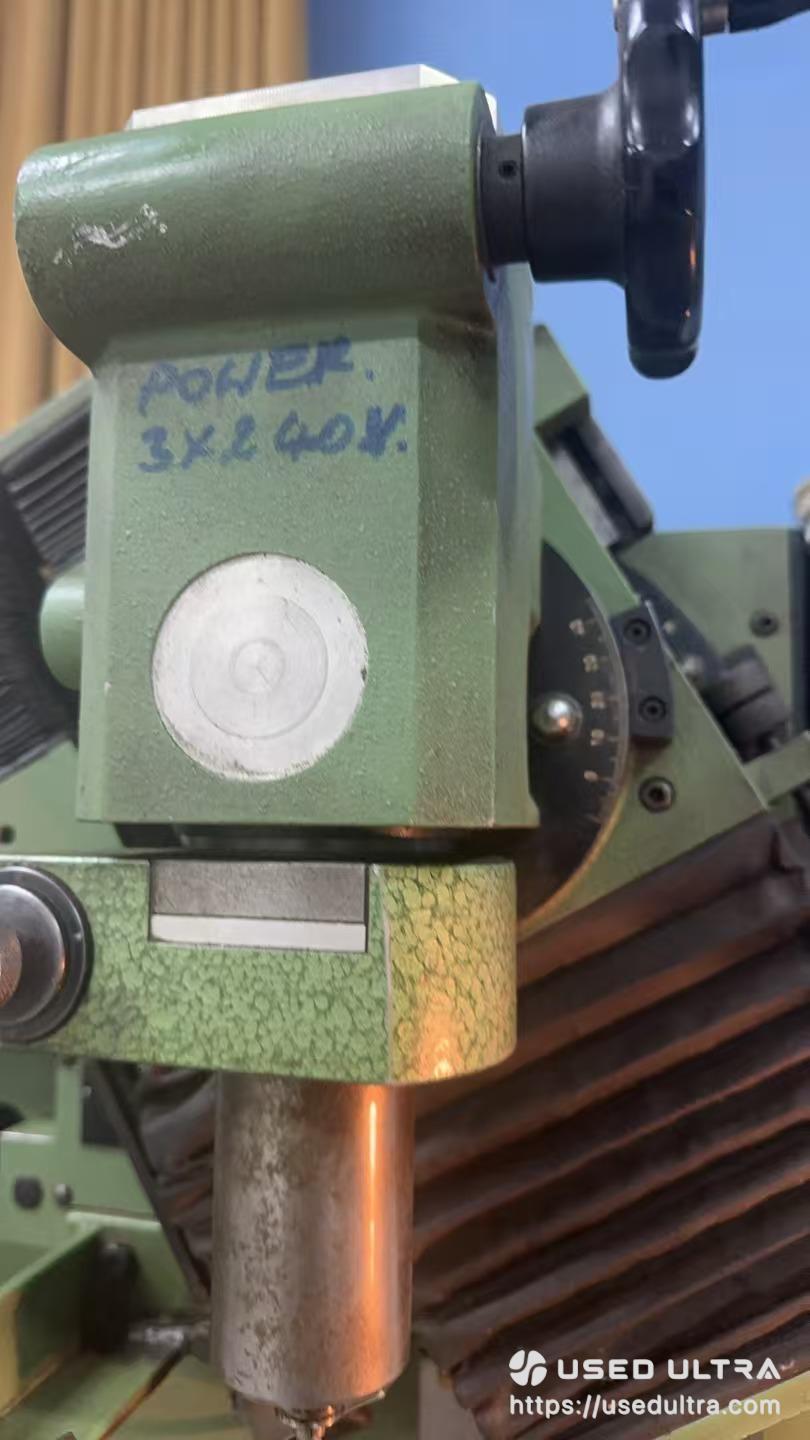

Used FISCHER DOTTIKON ZSM 1000 precision center hole grinding machine, made in Switzerland and designed for accurate center grinding of shafts and cylindrical workpieces. Equipped with a high-speed pneumatic grinding spindle up to 60,000 RPM, SP precision 3-jaw chuck, tailstock and rotary dressing attachment, this machine is suitable for precision shaft production, cylindrical grinding preparation and toolroom applications.

Technical Specifications

Specification	Details
Machine Type	Center Hole Grinding Machine
Condition	Used
Brand	FISCHER / FISCHER DOTTIKON
Model	ZSM 1000
Country of Origin	Switzerland
Maximum Workpiece Length	Approx. 1,000 mm / 39.37 in
Workpiece Diameter	Approx. 20–120 mm
Grinding Spindle Speed	0–60,000 RPM
Maximum Grinding Angle	0–90°
Grinding Spindle	FISCHER 60,000 RPM Pneumatic Precision Spindle

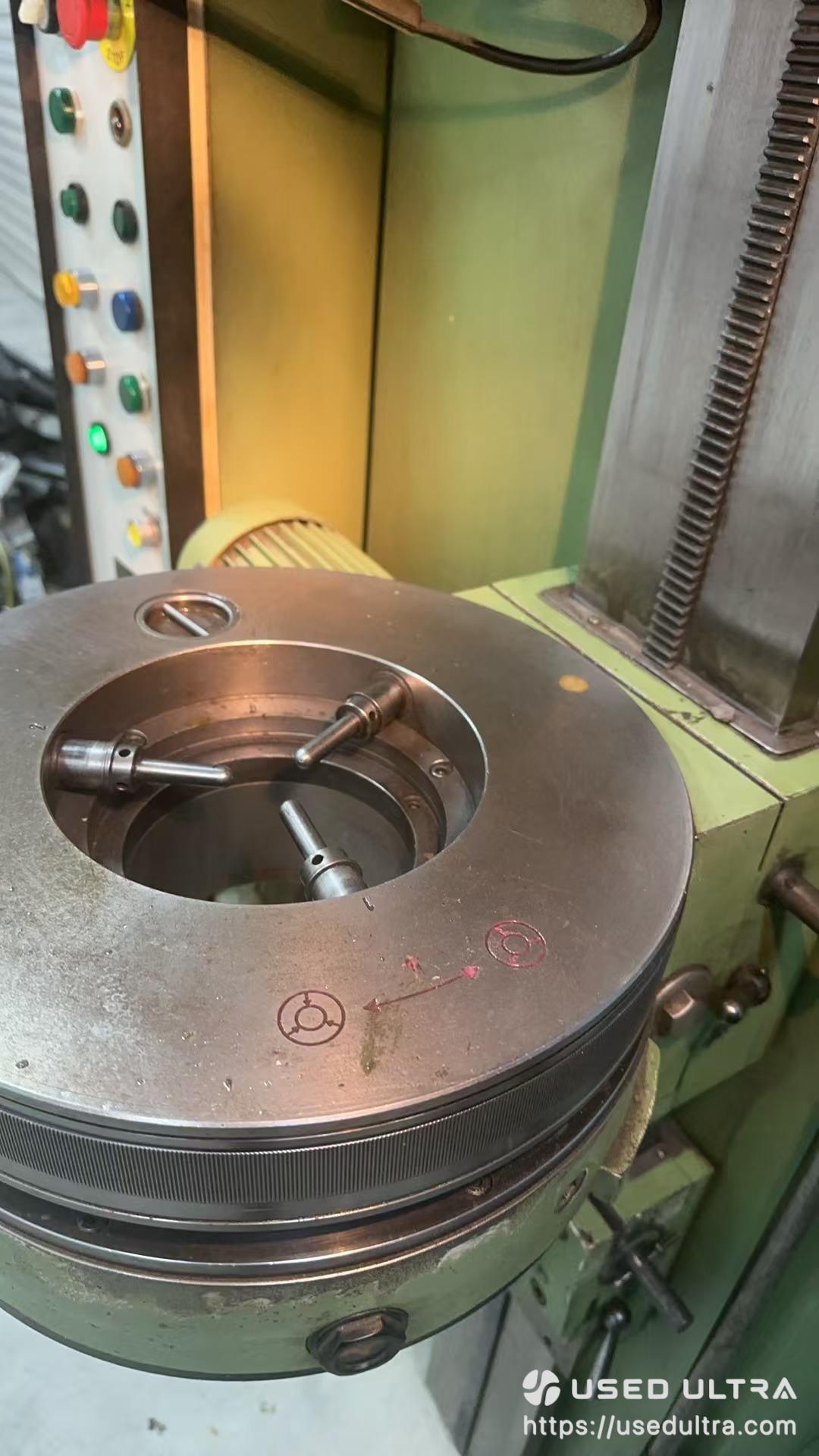

Chuck	SP Precision 3-Jaw Chuck
Tailstock	Included
Dressing System	Motorized Rotary Dressing Attachment
Machine Dimensions	Approx. 1,000 × 1,000 × 1,930 mm
Machine Weight	Approx. 800 kg

Applications & Suitable Industries

Used FISCHER ZSM 1000 center hole grinder is particularly suitable for preparing and restoring precision center holes before cylindrical grinding. Accurate center geometry helps establish a reliable reference for subsequent machining and can improve concentricity when shafts are ground between centers.

Typical applications include precision shafts, motor shafts, spindle components, gear shafts, transmission components, tool shafts, bearing-related components and other cylindrical parts requiring accurate center references. Center-hole grinding is especially useful in precision engineering, automotive component manufacturing, aerospace machining, spindle production, toolrooms and grinding workshops.

Modern machines based on the Fischer Dottikon center grinding principle continue to promote center-hole grinding for improving concentricity, correcting positional errors and preparing shafts for subsequent cylindrical grinding.

FAQ

What is the maximum workpiece length of the FISCHER ZSM 1000?

The working capacity is approximately 1,000 mm in length, equivalent to about 39 inches, making it suitable for a wide range of precision shaft components.

How fast does the grinding spindle run?

The pneumatic precision grinding spindle can operate at speeds up to approximately 60,000 RPM, depending on the installed spindle configuration.

What is a center hole grinder used for?

A center hole grinder is used to improve the geometry, concentricity and positioning of center holes before precision cylindrical grinding or other shaft finishing operations.
